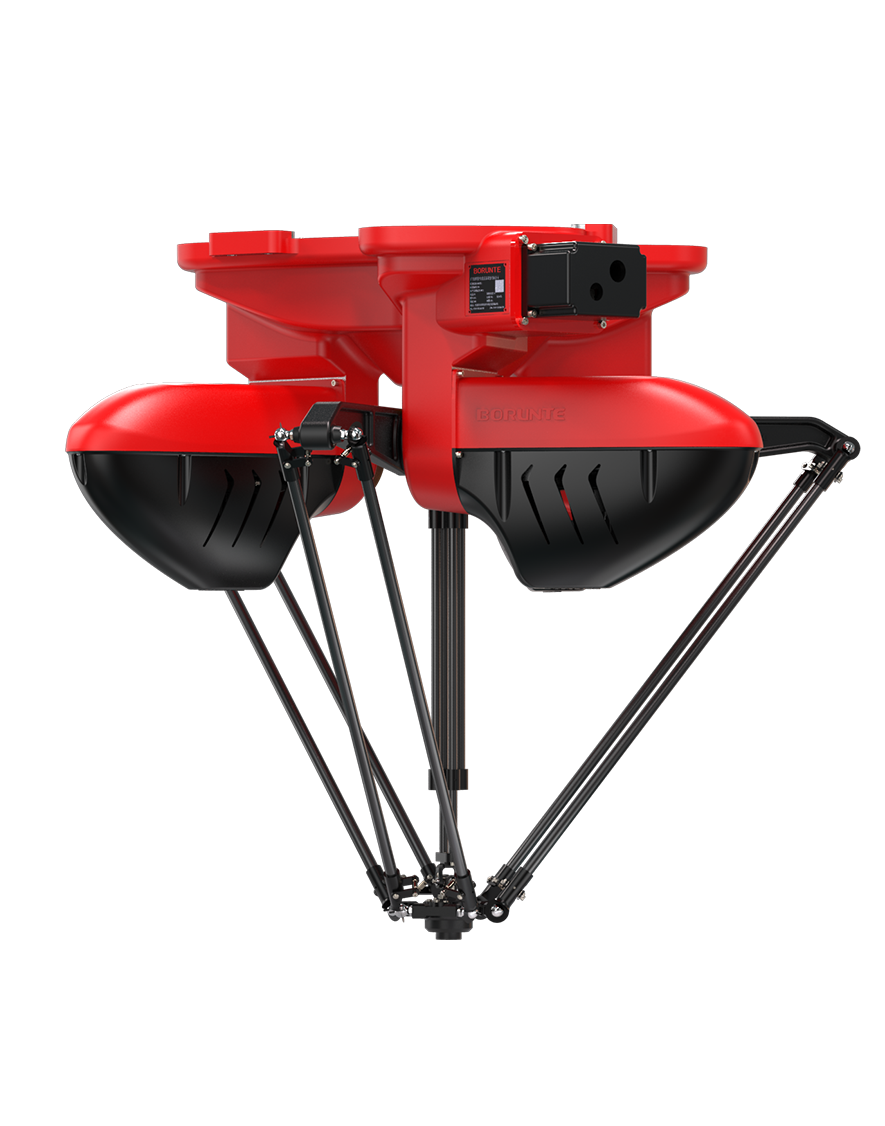

BRTIRPL1003A Four-axis Robot

BRTIRPL1003A type robot is a four-axis robot that developed by BORUNTE for assembly, sorting and other application scenarios of light, small and scattered materials. The maximum arm length is 1000mm and the maximum load is 3KG. The protection grade reaches IP50. Dust-proof. The repeat positioning accuracy is ±0.1mm.

Main Specification

Arm Length(mm)：1000

Loading Ability(KG)：3

Accuracy of position(mm)：±0.1

Angle repeat positioning：±0.5°

Maximum allowable moment of inertia of load(kg/㎡)：0.01

Power Source(KVA)：3.3

Weight(KG)：约104

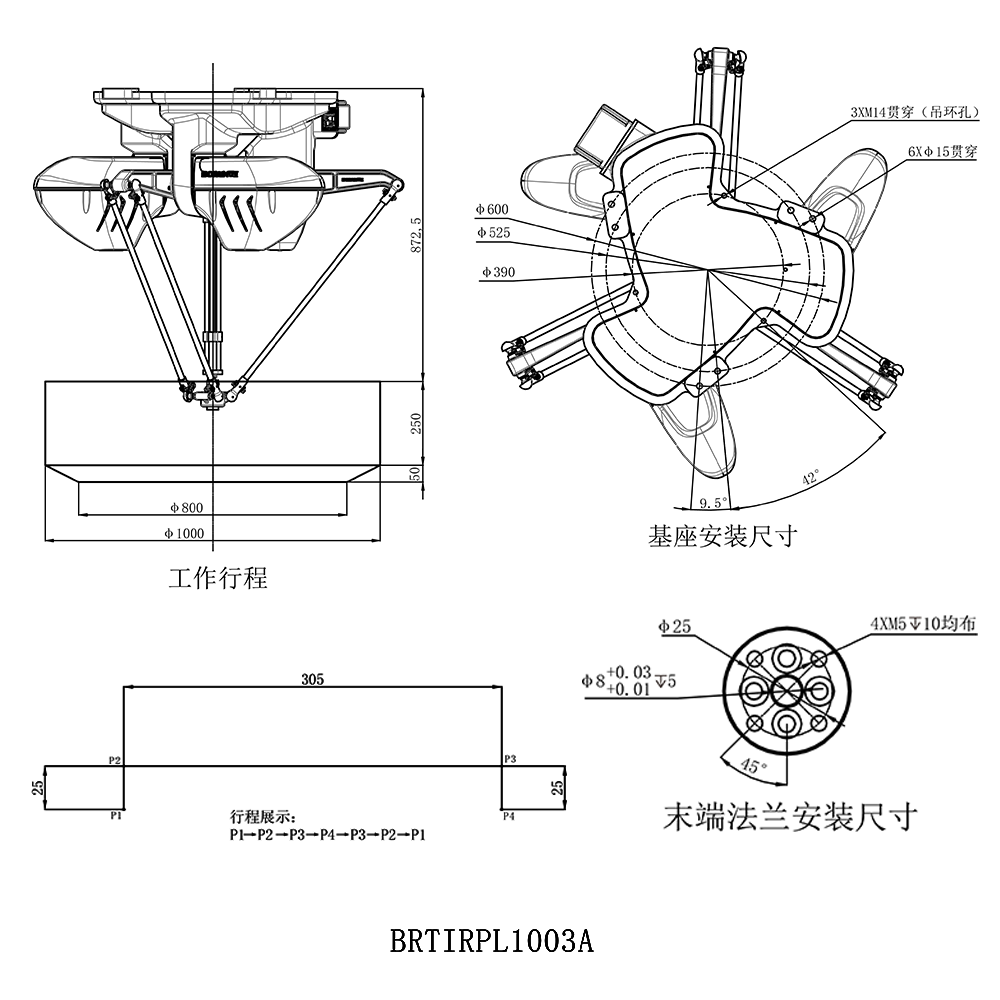

Item		Arm Length	Range	rhythm(次/min)
master Arm	Upper	Mounting surface to stroke distance 872.5mm	46.7°	stroke：25/305/25（mm）
master Arm	Hem		86.6°	stroke：25/305/25（mm）
end	J4		±360°	150次/min
