Main Specification

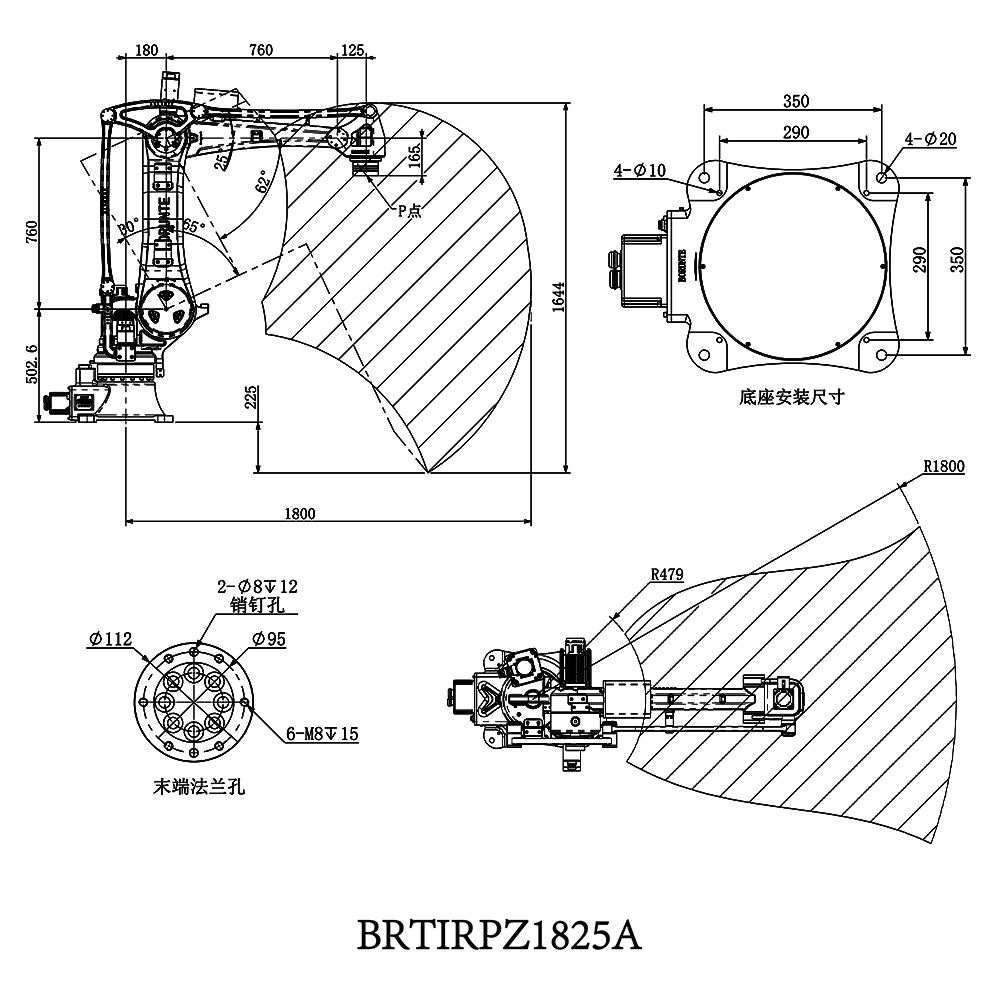

Arm Length(mm)：1800
Repeatability(mm)：±0.08
Loading Ability(KG)：25
Power Source(KVA)：6
Weight(KG)：约256
| Item | Range | Max.Speed | |
| Arm | J1 | ±155° | 175°/S |
| J2 | -65°/+30° | 135°/S | |
| J3 | -62°/+25° | 123°/S | |
| Wrist | J4 | ±360° | 300°/S |
| R34 | 60°-170° | / | |
Robotic Arm

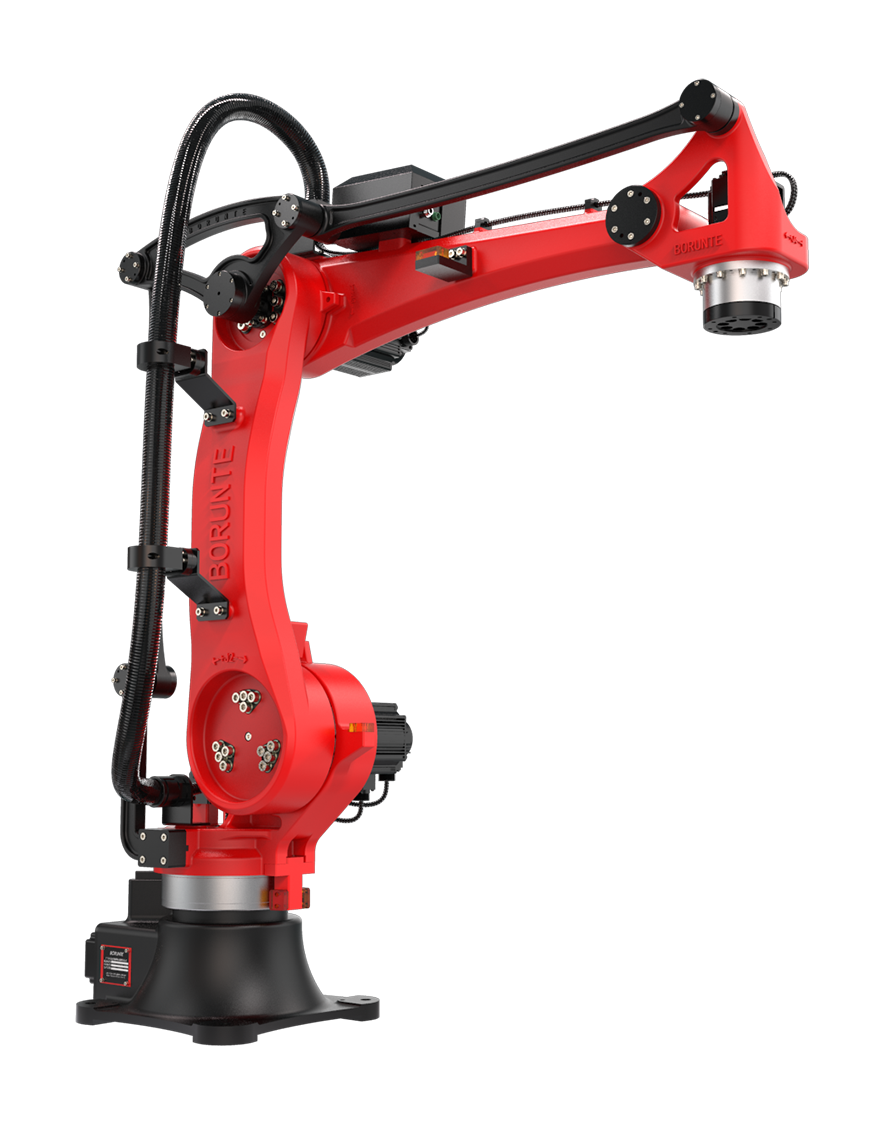

BRTIRPZ2250A Four-axis Robot
BRTIRPZ1825A type robot is a four-axis robot that developed by BORUNTE for some monotonous,frequent and repetitive long-term operations or operations in dangerous and harsh environments. The maximum arm length is 1800mm. The maximum load is 25KG.It’s flexible with multiple degrees of freedom. Suitable for loading and unloading, handling, dismantling and stacking etc. The protection grade reaches IP50. Dust-proof. The repeat positioning accuracy is ±0.08mm.
